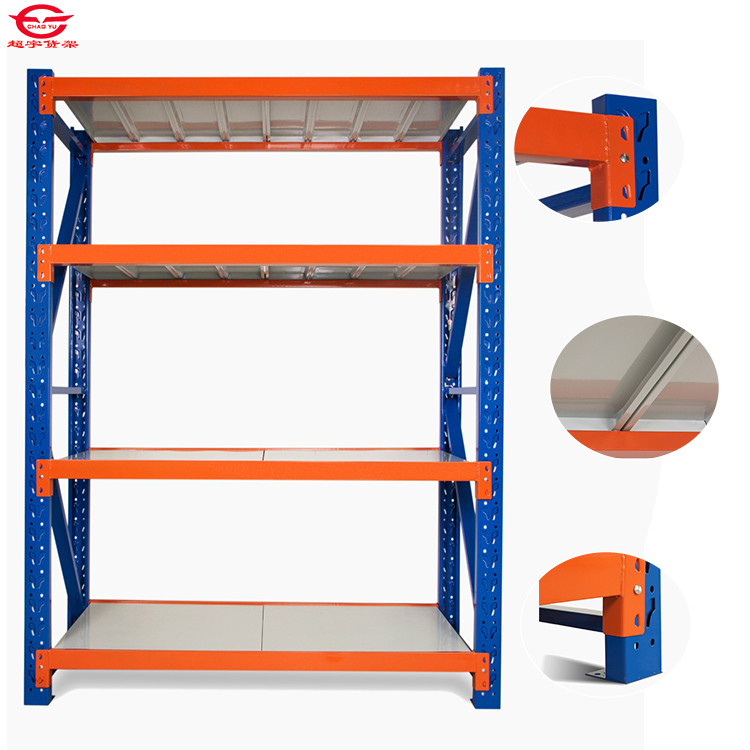

Longspan Storage Racks


Our storage shelving is designed for small to medium sized goods in commercial and industrial warehouse storage settings -where goods are fast-moving and require easy access. It is basically an ideal storage system for hand stacking plus, the shelves are adjustable and can be customized as per the storage requirements.

Category:

Medium Duty Storage Racking System




key word:

Longspan storage racks

Product Details

Description

Sizes (W*D*H)mm

Frame

(mm)

Beam

(mm)

Thick of the shelf (mm)







Load capacity 200kgs/layer





1500*500*2000







40*80*0.7







40*60*0.7







0.3

1500*600*2000

2000*500*2000

2000*600*2000







Load capacity 300kgs/layer



1500*500*2000







40*80*0.8







40*60*0.7







0..35

1500*600*2000

2000*500*2000

2000*600*2000

400kgs/layer

2000*600*2000

40*80*1.0

40*60*1.0

0.5

500kgs/layer

2000*600*2000

40*80*1.2

50*80*1.2

0.6

Materail

High quality Cold Rolled Steel Material

Finished

Powder Coating

Package

2 pcs upright put in a carton; 8 pcs beam in a carton;8 pcs shelf is a carton; or bubble wrap packing

MOQ

10PCS

Certificate

CE ,ISO9001



Details

Upright: Upright is combined with horizontal bracinig ,diagonal bracking and baynet.This structure is

convenient to install and have more stronger supporting power.

Beam:Special cold-rolled P-shaped closed beam is used for cross beam, which has the characteristics

of simplicity, reliability, light weight, strong bearing capacity and low cost.

Connector:Special design safety pin is equipped when the column clamp is connected with the column

to ensure that the beam will not fall off under the impact of external force.

Shelf: Laminates adopt strip laminates made in the world, which have the characteristics of strongbearing capacity, wear

resistance, simple replacement and low maintenance cost.
